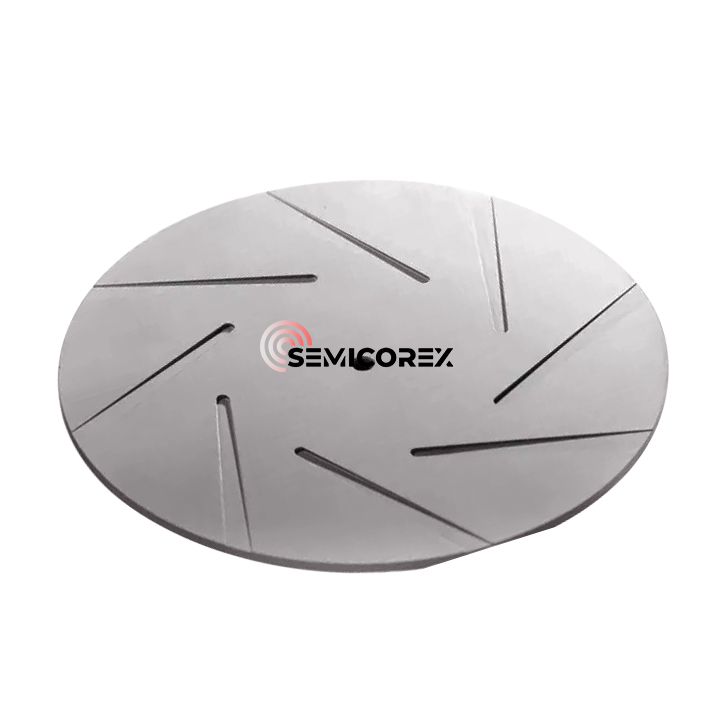

China SiC Graphite Susceptors Manufacturers, Suppliers, Factory

The Silicon Carbide (SiC) production process encompasses the preparation of substrate and epitaxy from the materials side, followed by chip design and manufacturing, device packaging, and finally, distribution to downstream application markets. Among these stages, substrate material processing is the most challenging aspect of the SiC industry. SiC substrates are both hard and brittle, making cutting, grinding, and polishing extremely difficult. This increases the likelihood of defects during processing and reduces the yield rate. Currently, major international SiC manufacturers are planning to transition from 6-inch to 8-inch SiC wafers. Overcoming the challenges associated with 8-inch substrates has become a critical benchmark for the SiC industry. This article will introduce the key parameters of SiC substrates.

In the rapidly evolving field of semiconductor manufacturing, even the smallest improvements can make a big difference when it comes to achieving optimal performance, durability, and efficiency. One advancement that is generating a lot of buzz in the industry is the use of TaC (Tantalum Carbide) coating on graphite surfaces. But what exactly is TaC coating, and why are semiconductor manufacturers taking notice of it?

Single crystal silicon and polycrystalline silicon each have their own unique advantages and applicable scenarios. Single crystal silicon is suitable for high-performance electronic products and microelectronics due to its excellent electrical and mechanical properties. Polycrystalline silicon, on the other hand, dominates the field of solar cells due to its low cost and good photoelectric conversion efficiency.

The third generation of semiconductor materials AlN belongs to the direct bandgap semiconductor, its bandwidth of 6.2 eV, with high thermal conductivity, resistivity, breakdown field strength, as well as excellent chemical and thermal stability, is not only an important blue light, ultraviolet materials, or electronic devices and integrated circuits, important packaging, dielectric isolation and insulation materials, especially for high-temperature high-power devices. In addition, AlN and GaN have a good thermal match and chemical compatibility, AlN used as GaN epitaxial substrate, can significantly reduce the defect density in GaN devices, improve device performance.

Electrostatic chucks (ESCs) have become indispensable in semiconductor manufacturing and flat panel display production, offering a damage-free, highly controllable method for holding and positioning delicate wafers and substrates during critical processing steps. This article delves into the intricacies of ESC technology, exploring its principles of operation, various adhesion mechanisms, and fundamental structural components.

The semiconductor thin film deposition process is an essential component of modern microelectronics technology. It involves constructing complex integrated circuits by depositing one or more thin layers of material on a semiconductor substrate.
