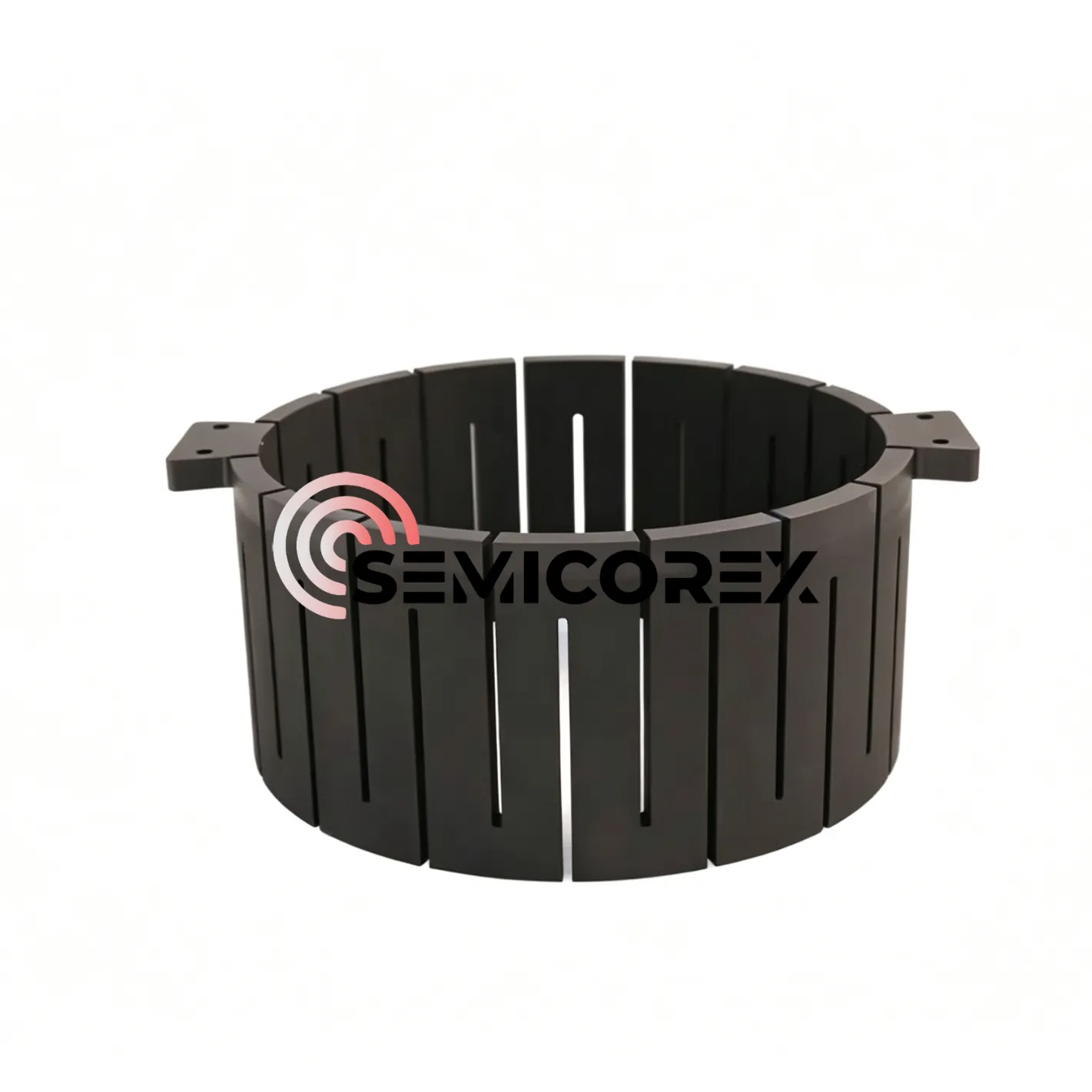

China Graphite Heater Manufacturers, Suppliers, Factory

A diffusion furnace is a specialized piece of equipment used to introduce impurities into semiconductor wafers in a controlled manner. These impurities, called dopants, change the electrical properties of semiconductors, allowing different types of electronic components to be made. This controlled diffusion process is critical to the production of transistors, diodes and integrated circuits.

Chemical Vapor Deposition (CVD) refers to a process technology where multiple gaseous reactants at varied partial pressures undergo a chemical reaction under specific temperature and pressure conditions. The resulting solid substance deposits on the surface of the substrate material, thereby obtaining the desired thin film. In traditional integrated circuit manufacturing processes, the obtained thin film materials are generally compounds such as oxides, nitrides, carbides, or materials like polycrystalline silicon, amorphous silicon, etc.

Within the silicon carbide (SiC) industry chain, substrate suppliers hold significant leverage, primarily due to value distribution. SiC substrates account for 47% of the total value, followed by epitaxial layers at 23%, while device design and manufacturing constitute the remaining 30%. This inverted value chain stems from the high technological barriers inherent to substrate and epitaxial layer production. Three major challenges plague SiC substrate growth: stringent growth conditions, slow growth rates, and demanding crystallographic requirements. These complexities contribute to increased processing difficulty, ultimately resulting in low product yields and high costs. Furthermore, the epitaxial layer’s thickness and doping concentration are critical parameters directly impacting the final device performance.

In the process of wafer preparation, there are two core links: one is the preparation of the substrate, and the other is the implementation of the epitaxial process. The substrate, a wafer carefully made of semiconductor single crystal material, can be directly put into the wafer manufacturing process as a basis to produce semiconductor devices, or further enhance the performance through the epitaxial process.

Oxidation processes play a critical role in preventing such problems by creating a protective layer on the wafer, known as the oxide layer, which acts as a barrier between different chemicals.

​As the world searches for new opportunities in the semiconductor field, Gallium Nitride (GaN) continues to stand out as a potential candidate for future power and RF applications. However, despite its numerous benefits, GaN faces a significant challenge: the absence of P-type products. Why is GaN hailed as the next major semiconductor material, why is the lack of P-type GaN devices a critical drawback, and what does this mean for future designs?
