Silicon Carbide SiC Coated Barrel Susceptor

Semicorex is a leading independently owned manufacturer of Silicon Carbide SiC Coated Barrel Susceptor, Precision Machined High Purity Graphite focusing on the Silicon Carbide Coated Graphite, Silicon Carbide Ceramic, MOCVP areas of semiconductor manufacturing. Our Silicon Carbide SiC Coated Barrel Susceptor have a good price advantage and cover many of the European and American markets. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

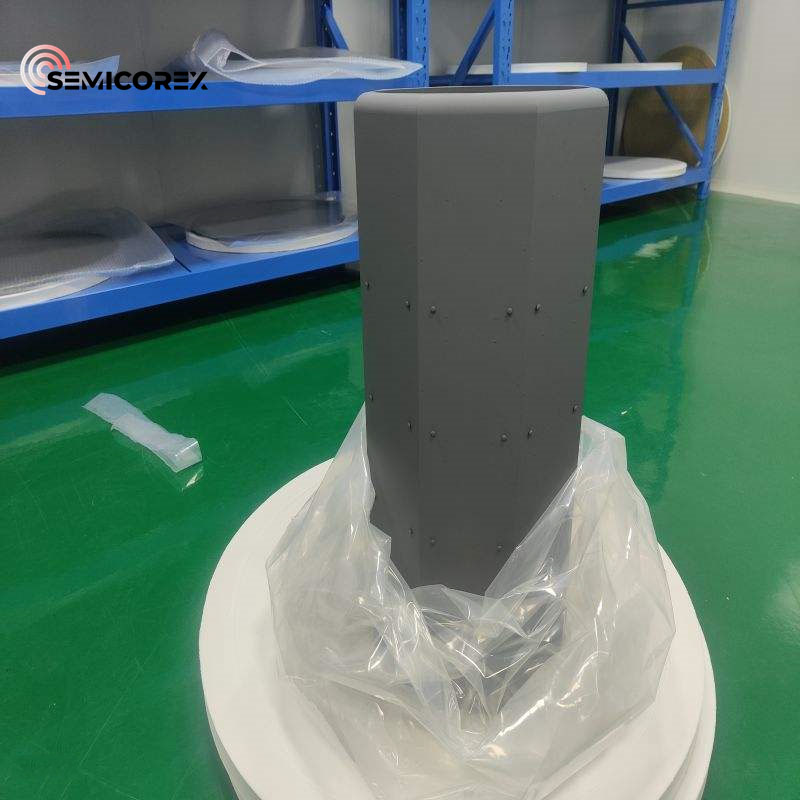

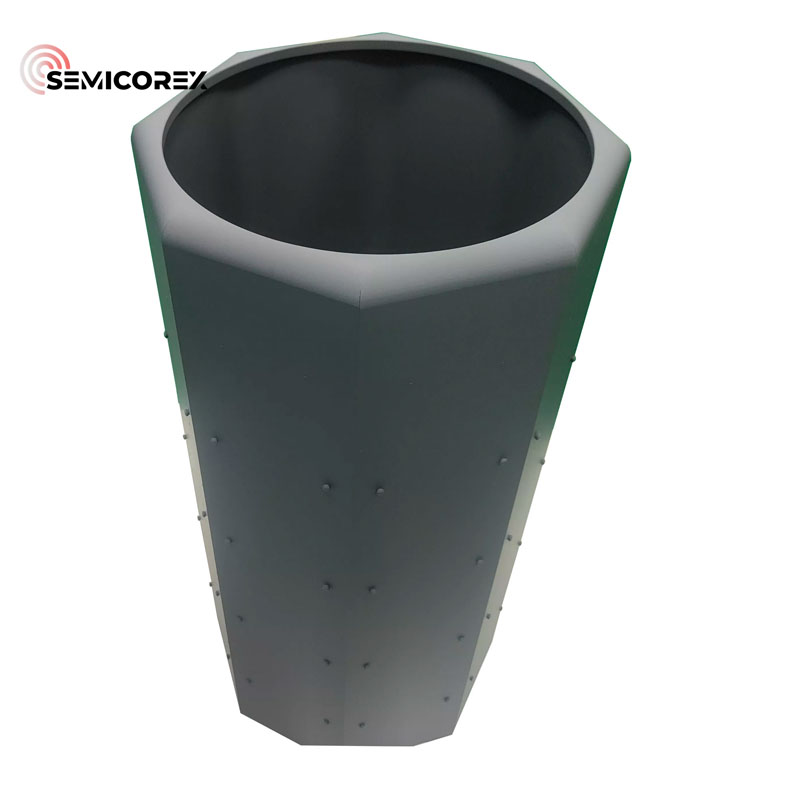

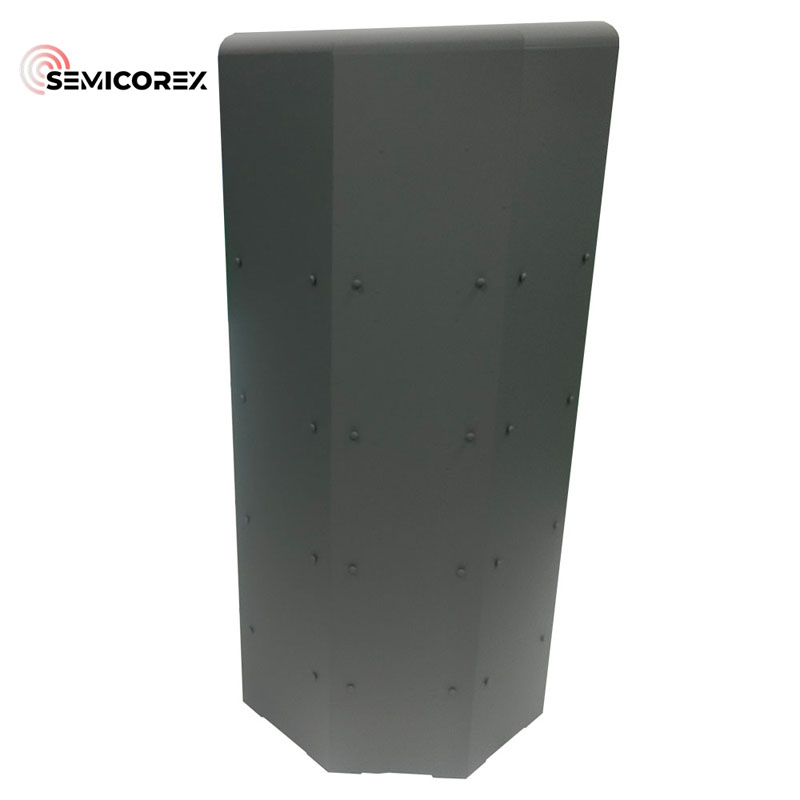

Semicorex Silicon Carbide SiC Coated Barrel Susceptor is a graphite product coated with high purified SiC, which has high heat and corrosion resistance. It is suitable for LPE. The Silicon Carbide SiC Coated Barrel Susceptor used in processes that form the epixial layer on semiconductor wafers, which has a high thermal conductivity, and excellent heat distribution properties.

Parameters of Silicon Carbide SiC Coated Barrel Susceptor

Main Specifications of CVD-SIC Coating
SiC-CVD Properties
Crystal Structure	FCC β phase
Density	g/cm ³	3.21
Hardness	Vickers hardness	2500
Grain Size	μm	2~10
Chemical Purity	%	99.99995
Heat Capacity	J·kg-1 ·K-1	640
Sublimation Temperature	℃	2700
Felexural Strength	MPa (RT 4-point)	415
Young’ s Modulus	Gpa (4pt bend, 1300℃)	430
Thermal Expansion (C.T.E)	10-6K-1	4.5
Thermal conductivity	(W/mK)	300

Features of Silicon Carbide SiC Coated Barrel Susceptor

- Both the graphite substrate and silicon carbide layer have good density and can play a good protective role in high temperature and corrosive working environments.

- Silicon carbide coated susceptor used for single crystal growth has a very high surface flatness.

- Reduce the difference in thermal expansion coefficient between the graphite substrate and silicon carbide layer, effectively improve the bonding strength to prevent cracking and delamination.

- Both the graphite substrate and silicon carbide layer have a high thermal conductivity, and excellent heat distribution properties.

- High melting point, high temperature oxidation resistance, corrosion resistance.
