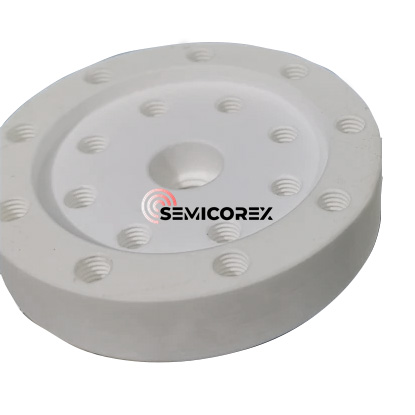

Ceramic Electrostatic Chuck

Semicorex Ceramic Electrostatic Chuck, crafted from alumina ceramic, is essential for securely holding semiconductor wafers during various fabrication processes. With its unique combination of material properties, this Ceramic Electrostatic Chuck plays a crucial role in ensuring precision, reliability, and efficiency throughout the production of semiconductor devices.

At the heart of the Ceramic Electrostatic Chuck is alumina ceramic, a material that is highly regarded in the industry for its exceptional physical and chemical properties. Alumina (Al2O3) is known for its outstanding electrical insulation capabilities, which are critical in the context of an ESC. During semiconductor processing, wafers must be held firmly without the introduction of any electrical interference that could affect the delicate circuitry being fabricated. The alumina ceramic’s high dielectric strength ensures that the chuck can operate at the necessary high voltages without the risk of electrical discharge, providing a stable and reliable clamping force that is essential for maintaining wafer position and integrity.

The Ceramic Electrostatic Chuck operates by generating an electrostatic field through electrodes embedded within the alumina ceramic. When a voltage is applied, the resulting field creates a strong clamping force that securely holds the wafer in place on the chuck’s surface. This non-mechanical clamping method is particularly advantageous in semiconductor processing because it minimizes physical contact and reduces the risk of contamination and mechanical damage to the wafer, which is especially critical for advanced nodes where even the slightest defect can result in significant yield loss.

One of the standout features of the Ceramic Electrostatic Chuck is its thermal performance. Semiconductor processes often involve high temperatures, which can introduce thermal stress to the wafer. Alumina ceramic is prized for its excellent thermal conductivity, which allows the Ceramic Electrostatic Chuck to efficiently dissipate heat generated during processing. This thermal management capability is essential for maintaining uniform temperature distribution across the wafer, thereby reducing thermal gradients that could lead to warping or micro-cracking. The stability provided by the alumina ceramic ensures that critical processes such as photolithography and etching are carried out with precision, preserving the integrity of the wafer throughout the manufacturing cycle.

Moreover, the mechanical robustness of alumina ceramic contributes significantly to the durability and longevity of the ESC. In semiconductor fabrication, the Ceramic Electrostatic Chuck is subjected to repeated cycles of wafer placement, processing, and removal. The wear resistance of alumina ensures that the chuck can endure these cycles without significant degradation. This resistance to wear not only prolongs the lifespan of the chuck but also reduces the likelihood of particle generation, which could otherwise contaminate the wafer and compromise device quality. The material’s hardness also means that the chuck surface remains smooth and uniform, a critical factor in maintaining consistent clamping force and avoiding wafer damage.
