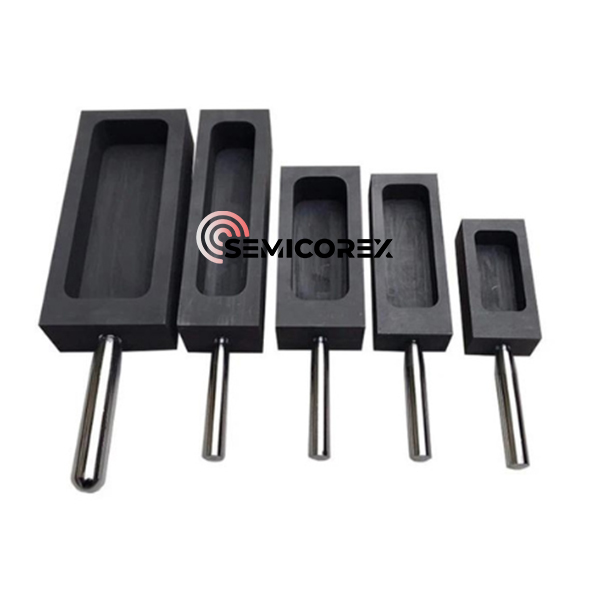

Refined Graphite Mold

Material Characteristics of Refined Graphite Mold

Introduction to Composition and Purity

Semicorex Refined Graphite Mold represents a specialized tooling system, primarily composed of over 99% graphite and containing less than 0.1% ash content. This minimal ash content ensures negligible impurities, thus preventing contamination in cast metals. The purity of the graphite used in these molds is critical for achieving high-quality casting results, as it ensures a clean and defect-free finish on the cast products.

Structural Integrity and Dimensional Stability

A defining feature of the Refined Graphite Mold is its exceptionally low coefficient of thermal expansion, which is significantly lower than that of steel. This property enables the mold to maintain its shape and structural integrity when filled with molten metal, without producing a porous or sticky edge finish. This stability is crucial for high-precision applications where dimensional accuracy and surface quality are paramount.

Surface Finish and Ease of Use

The Refined Graphite Mold is renowned for its smooth cavity finish, which facilitates the easy removal of solidified metal from the mold. This smooth surface reduces the likelihood of defects and ensures that the final product retains its intended shape and surface characteristics. Furthermore, graphite molds are among the few that can be tooled without the application of heat, adding to their versatility and ease of use.

Cost-Effectiveness and Processing Efficiency

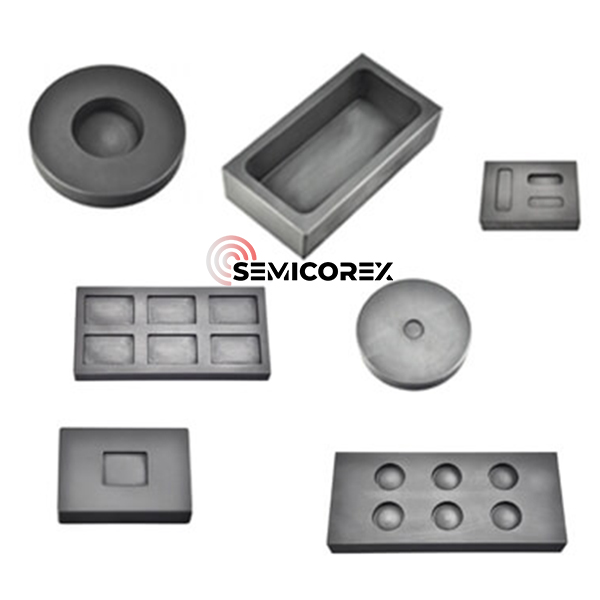

Graphite molds offer significant advantages in terms of cost and processing efficiency. The lower material cost and rapid processing time make the Refined Graphite Mold an economical choice for continuous casting applications. It is particularly popular for casting silver bar molds, bullion molds, ingots, and custom molds, where both cost-effectiveness and quick turnaround are essential.

Design and Tooling Flexibility

The design process for creating a Refined Graphite Mold involves machining the mold into two halves, similar to the process used for cast iron and steel molds. This approach allows for effective mold casting, enabling precise replication of intricate shapes and designs. The ability to machine the mold into halves facilitates straightforward integration into existing casting processes, making it adaptable for a wide range of applications.

Applications of Refined Graphite Mold

Metal Molding

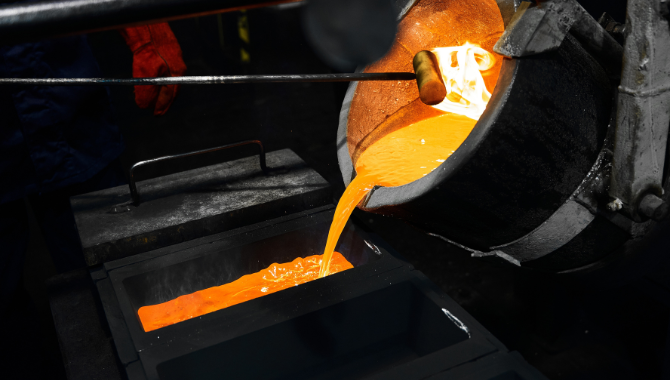

The Refined Graphite Mold is extensively used in metal molding applications, processing a variety of metals including cast steel, titanium, molybdenum, iron, and non-ferrous metals. Its ability to withstand extreme temperatures without deformation or contamination makes it ideal for these demanding processes. The mold’s thermal stability ensures that complex metal components can be cast with precision and consistency.

Graphite Molds for Glass

Beyond metals, the Refined Graphite Mold is also employed in the glass industry. Its high thermal resistance and smooth surface are advantageous in the formation of glass products, where maintaining clarity and shape is essential. Graphite molds provide the necessary durability and precision required for high-quality glass manufacturing.

Plastic Molding

In addition to metal and glass, the Refined Graphite Mold finds applications in plastic molding. Its versatility and ability to produce detailed and accurate molds make it suitable for a variety of plastic products. The mold’s precise thermal properties ensure even heat distribution, which is critical for achieving uniformity in plastic components.
