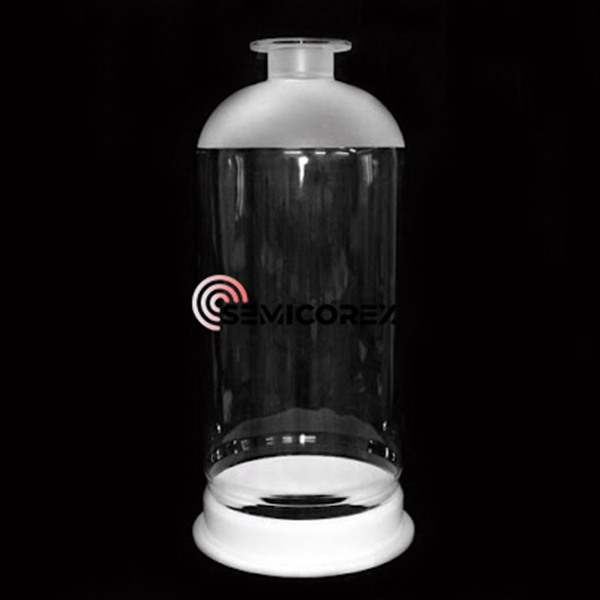

High Purity Quartz Bell Jar

In the realm of semiconductor fabrication and research, the High Purity Quartz Bell Jar finds extensive use in processes such as thermal oxidation, annealing, and chemical vapor deposition (CVD). These procedures often require controlled atmospheres or vacuum conditions to ensure the integrity and quality of the materials being processed. The High Purity Quartz Bell Jar provides a stable environment, safeguarding the samples from atmospheric contamination and facilitating precise control over the experimental parameters.

Design and Structure

The High Purity Quartz Bell Jar typically features a cylindrical or conical shape with a flat bottom and an open top, closely resembling a bell—hence its name. This design allows for easy placement and removal of samples while ensuring that the chamber can be securely sealed to maintain vacuum or inert gas conditions. The structural integrity of the jar is paramount, given the demanding thermal and chemical environments it must endure.

High Purity Standards

Manufactured from high-purity fused quartz, the bell jar is engineered to minimize contamination of the samples or materials being processed. This high level of purity is essential in semiconductor fabrication, where even minute impurities can significantly impact the performance of the final product. The use of fused quartz ensures that the bell jar meets the stringent purity standards required for high-tech applications, providing a reliable and contamination-free environment for various processes.

Exceptional Thermal Stability

One of the standout properties of fused quartz is its excellent thermal stability. The High Purity Quartz Bell Jar can withstand high temperatures without significant deformation or degradation, making it suitable for a wide range of thermal processes. This thermal resilience is crucial for applications such as thermal oxidation and annealing, where maintaining consistent temperatures is key to achieving the desired material properties.

Chemical Inertness

Quartz is highly resistant to most chemicals, ensuring compatibility with a broad spectrum of substances and reaction conditions. This chemical inertness is particularly valuable in processes involving aggressive chemicals, as it prevents the bell jar from reacting with the substances being processed. The High Purity Quartz Bell Jar thus provides a chemically stable environment, preserving the integrity of the samples and ensuring accurate and reproducible results.

Transparency for Visual Observation

Another significant advantage of quartz is its transparency to UV and visible light. The High Purity Quartz Bell Jar allows for visual observation of the processes occurring inside the chamber, providing valuable insights into the experimental conditions. This transparency is particularly useful in research settings, where real-time monitoring can aid in optimizing process parameters and achieving the desired outcomes.

Vacuum Compatibility

The High Purity Quartz Bell Jar is designed to create and maintain vacuum conditions, a critical requirement for many advanced research and fabrication processes. Features such as ground glass flanges ensure secure sealing with vacuum adapters or pumps, maintaining the integrity of the vacuum environment. This capability is essential for processes like CVD, where precise control over the atmosphere is necessary to achieve uniform material deposition.
