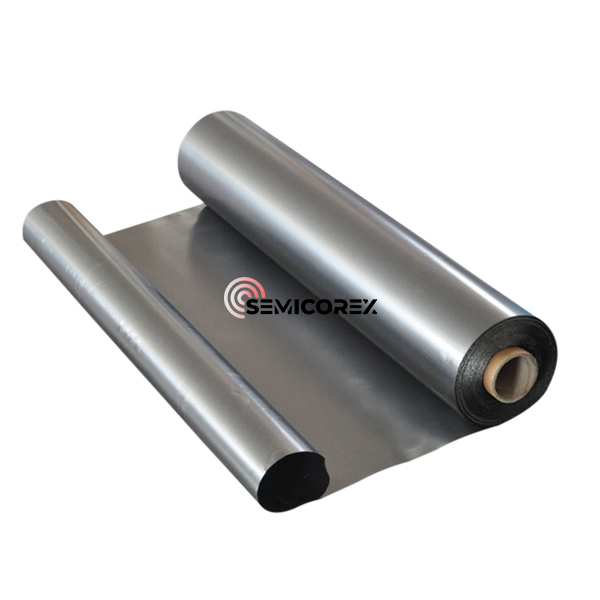

Flexible Graphite Foil

Semicorex Flexible Graphite Foil is a cutting-edge material derived from natural graphite flakes. Through a meticulous process involving chemical preparation with acids and oxidizing agents, the natural graphite undergoes an intense heat treatment that expands its structure. This results in self-bonded graphite particles that form a continuous, flexible strip without the need for additional binders. The outcome is a low-density, high-performance material available in rolled sheets, making it ideal for a variety of applications.

Exceptional Properties

Flexible Graphite Foil boasts a remarkable array of properties that make it a preferred choice for sealing and gasket applications. Here are some key features:

1. Chemical Resistance: It exhibits excellent resistance to a wide range of chemical agents, ensuring longevity and reliability in harsh environments.
2. Stability Over Time: The material remains unaffected by environmental changes, providing consistent performance without material alteration over time。
3. Wide Temperature Range: Flexible Graphite Foil can endure extreme temperatures ranging from -196 °C to 2,500 °C in inert atmospheres, and up to 450 °C/550 °C in air. This resilience makes it suitable for various industrial applications where temperature fluctuations are common.
4. High Compressibility: The foil's unique structure allows for high compressibility, ensuring effective sealing under pressure.
5. Elastic Recovery and Low Creep: Its exceptional elastic recovery and notably low creep within its working temperature range guarantee a proper seal, making it indispensable for applications requiring reliability and precision.

6. Ease of Transformation: The material is easy to cut and manipulate, allowing for the creation of flat seals tailored to specific requirements.

Diverse Applications
Flexible Graphite Foil is engineered to meet the most demanding sealing specifications across a variety of industries. Mersen has developed an extensive range of PAPYEX® grades to accommodate various applications, including:

1. Automotive Industry: Head gaskets that withstand high temperatures and pressures.
2. Refineries: Flange gaskets designed for optimal sealing in complex refinery operations.
3. Nuclear Industry: Valve packing that meets stringent safety and performance standards.

Our flexible graphite foil is available in various widths ranging from 4 mm to 1,500 mm, with thicknesses varying from 0.15 mm to 3 mm. Additionally, density can be customized between 0.7 g/cc and 1.3 g/cc, ensuring that customers can select the most suitable specifications for their applications.

Flexible Graphite Foil is a versatile, high-performance material that excels in sealing and gasket applications while also finding utility in various industrial processes. Its unique combination of chemical resistance, temperature stability, compressibility, and ease of use positions it as a premier choice for engineers and manufacturers alike.

Whether you are in the automotive, refinery, or nuclear sector, Flexible Graphite Foil offers a reliable, long-lasting solution designed to meet the toughest specifications and deliver superior performance.
