Annealing

Ion implantation is the process of accelerating and implanting dopant ions into a silicon wafer to change its electrical properties. Annealing is a thermal treatment process that heats the wafer to repair the lattice damage caused by the implantation process and activate the dopant ions to achieve the desired electrical properties.

1. Purpose of Ion Implantation

Ion implantation is a critical process in modern semiconductor manufacturing. This technique allows for precise control over the type, concentration, and distribution of dopants, which are necessary for creating the P-type and N-type regions in semiconductor devices. However, the ion implantation process can create a damage layer on the wafer's surface and potentially disrupt the lattice structure within the crystal, negatively impacting device performance.

2. Annealing Process

To address these issues, annealing is performed. This process involves heating the wafer to a specific temperature, maintaining that temperature for a set period, and then cooling it down. The heating helps to rearrange the atoms within the crystal, restore its complete lattice structure, and activate the dopant ions, allowing them to move to their appropriate positions in the lattice. This optimization enhances the semiconductor's conductive properties.

3. Types of Annealing

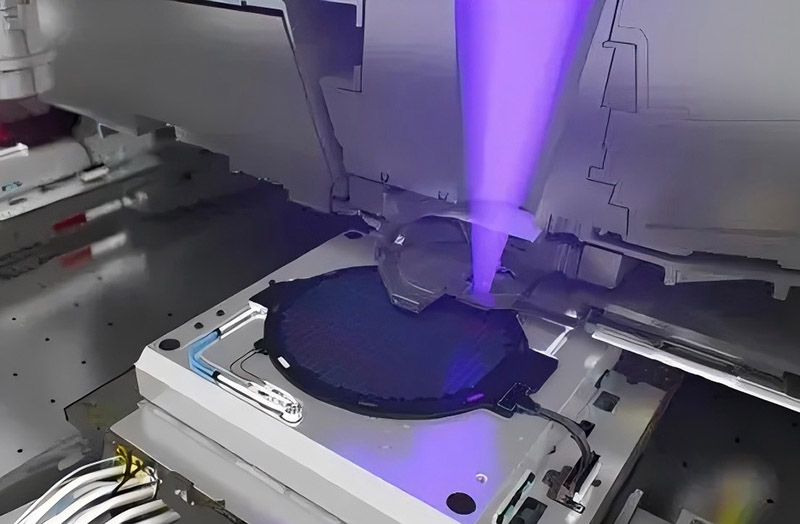

Annealing can be categorized into several types, including rapid thermal annealing (RTA), furnace annealing, and laser annealing. RTA is a widely used method that employs a high-power light source to quickly heat the wafer's surface; the processing time typically ranges from a few seconds to a few minutes. Furnace annealing is conducted in a furnace over a longer period, achieving a more uniform heating effect. Laser annealing utilizes high-energy lasers to heat the wafer's surface rapidly, allowing for extremely high heating rates and localized heating.

4. Impact of Annealing on Device Performance

Proper annealing is essential for ensuring the performance of semiconductor devices. This process not only repairs the damage inflicted by ion implantation but also ensures that the dopant ions are adequately activated to achieve the desired electrical properties. If annealing is conducted improperly, it can lead to an increase in defects on the wafer, adversely affecting device performance and potentially causing device failure.

Post-ion implantation annealing is a key step in semiconductor manufacturing, involving a carefully controlled heat treatment process for the wafer. By optimizing annealing conditions, the lattice structure of the wafer can be restored, the dopant ions can be activated, and the performance and reliability of semiconductor devices can be significantly enhanced. As semiconductor processing technology continues to advance, annealing methods are also evolving to meet the increasing performance demands of devices.
