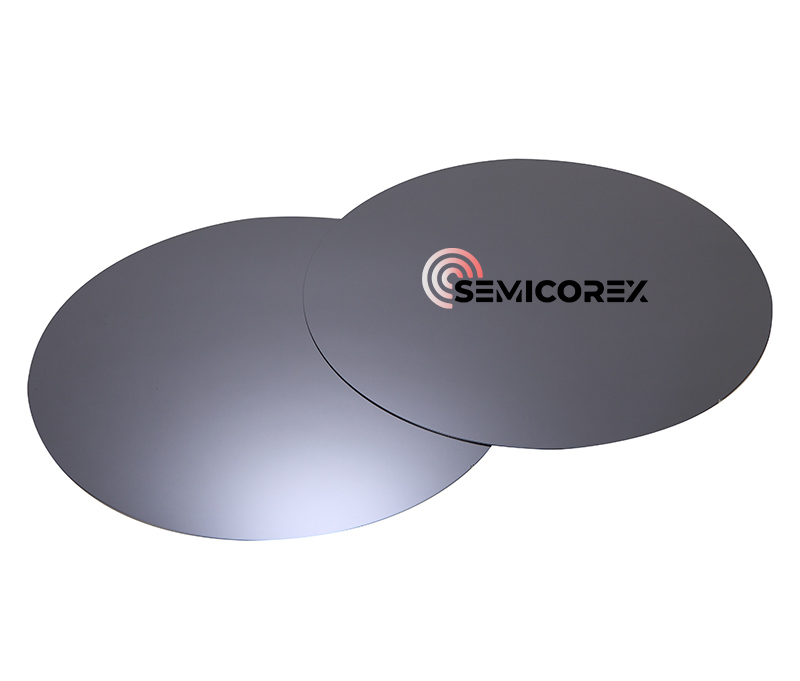

What is a Dummy Wafer?

Why Are Dummy Wafers Critical in Semiconductor Manufacturing?

In the semiconductor manufacturing process, wafers form the foundation of chip production. Among these, a special type of wafer, referred to as the Dummy Wafer, plays a pivotal role in ensuring equipment stability and controlling production costs. Unlike production wafers, Dummy Wafers are not part of the final product and are not sold directly. However, their significance in facilitating manufacturing processes and safeguarding production cannot be overstated. This article explores the definition, functions, applications, material considerations, and management of Dummy Wafers.

How Are Dummy Wafers Used in Semiconductor Processes?

Dummy Wafers have a wide range of applications across various stages of semiconductor manufacturing. Below are some key use cases:

Filling Equipment Capacity

Certain equipment, such as furnace tubes and etching machines, requires a specific number of wafers to operate efficiently. For example, during thermal processing in a furnace tube, a stable gas flow, temperature field, and chemical reaction environment can only be achieved with an adequate wafer load. If too few production wafers are used, process instability can occur, affecting product quality. Dummy Wafers act as fillers, ensuring the equipment operates under optimal load conditions.

Think of the furnace tube as an oven: only when enough loaves of bread are placed inside can the heat distribute uniformly for the best baking results. Similarly, Dummy Wafers ensure that equipment performs at its best.

Protecting Production Wafers

During high-risk processes like ion implantation, etching, or chemical vapor deposition (CVD), there is a higher likelihood of instability or particle generation during equipment calibration or initial runs. Using production wafers in such scenarios could lead to irreparable damage. Dummy Wafers serve as a protective measure, entering the process flow first to minimize risk to production wafers and preserve yield.

Ensuring Uniform Process Load

Some processes, such as physical vapor deposition (PVD), require uniform wafer distribution within the equipment. Uneven wafer placement can result in inconsistent deposition rates or thicknesses, compromising product quality. By adding Dummy Wafers, a balanced and stable processing environment is maintained.

Reducing Equipment Downtime

Shutting down and restarting equipment consumes time and resources in semiconductor manufacturing. Extended idle periods can also degrade equipment performance. Running Dummy Wafers during downtime keeps the equipment active and prepares it for subsequent production.

Equipment Verification and Process Calibration

Dummy Wafers are frequently used as carriers for equipment verification and process testing. For instance, after maintenance or cleaning, Dummy Wafers can confirm whether the equipment is functioning correctly. Any issues detected can be resolved before production wafers are introduced, ensuring no valuable wafers are wasted.

What Are the Material and Usage Characteristics of Dummy Wafers?

The material and specifications of Dummy Wafers are tailored to meet the requirements of different processes and equipment. Below are their distinguishing features:

Material

Most Dummy Wafers are made from the same base materials as production wafers, such as monocrystalline or polycrystalline silicon, to ensure similar performance during processing. For specific processes, such as high-temperature treatments, more durable materials may be selected, even if they are less costly.

Surface Treatment

The surface quality of Dummy Wafers does not need to match the precision of production wafers. They might be simple polished wafers or test-grade wafers, and they are often reused unless severely damaged.

Lifespan

Dummy Wafer lifespan is influenced by the process environment, such as exposure to high temperatures or corrosive conditions. Harsh environments may shorten their usable life.

Cost Considerations

Dummy Wafers are significantly cheaper than production wafers, offering a cost-effective solution for safeguarding production and maintaining equipment stability.

How Can Dummy Wafer Management Be Optimized?

Effective management of Dummy Wafers is crucial for improving production efficiency and minimizing costs. Below are some strategies for Dummy Wafer management and optimization:

Usage Tracking

By recording the number of uses, process flows, and wear conditions of Dummy Wafers, their usage cycles can be optimized to maximize resource utilization.

Reducing Contamination

Repeated use of Dummy Wafers can introduce particle contamination. Regular cleaning or replacement is necessary to maintain a clean equipment environment.

Process Adaptation

Different processes impose specific requirements on Dummy Wafers. For instance, the surface quality of Dummy Wafers might impact film deposition during thin-film processes. Selecting appropriate Dummy Wafers for each process is essential.

Inventory Management

While Dummy Wafers are not part of the final product, their inventory must be managed effectively to balance production needs and cost control.

Disposal and Recycling

When Dummy Wafers reach the end of their lifecycle, they should be disposed of in compliance with environmental regulations. Silicon materials can be recycled, or the wafers can be repurposed for lower-grade testing.

What Are the Practical Use Cases of Dummy Wafers?

Furnace Tube Loading

In oxidation processes, furnace tubes require a precise number of wafers to maintain uniform temperature distribution and achieve consistent oxide layer thickness. Dummy Wafers satisfy this requirement while protecting production wafers from potential instability.

Etching Equipment Calibration

After process switches or equipment maintenance, Dummy Wafers are used to validate etching rates and uniformity. This ensures that production wafers are not exposed to potential issues during calibration.

Conclusion

Dummy Wafers are an indispensable part of semiconductor manufacturing, serving roles that extend far beyond equipment calibration and process testing. By ensuring optimal equipment utilization, reducing production costs, and maintaining process stability, Dummy Wafers contribute significantly to efficient and sustainable wafer manufacturing. With effective management and optimization, these unsung heroes of the semiconductor industry help minimize waste and maximize resource efficiency, driving the industry toward higher performance and sustainability.
