High-Purity Quartz Crucibles

Semicorex High-Purity Quartz Crucibles is an essential component in the semiconductor manufacturing process, particularly in the growth of single-crystal silicon. It is crafted from high-quality, ultra-pure quartz material, designed to withstand the extreme conditions present during crystal growth, while providing a stable and contamination-free environment for the material being processed. This product is predominantly used in the production of single-crystal silicon, which is a critical material for the semiconductor industry, particularly for applications in photovoltaic cells, integrated circuits, and other electronic components.

Materials and Manufacturing Process

Semicorex High-Purity Quartz Crucibles is made from superior-grade quartz, ensuring an impurity level below 10 parts per million (ppm), which significantly reduces the risk of contamination during the crystal growth process. The production of these crucibles involves high-precision manufacturing techniques, including high-temperature melting and careful molding to achieve flawless structural integrity. The crucibles undergo rigorous quality control measures throughout the production process to ensure consistency, reliability, and high performance.

Quartz, due to its high melting point of 1,650°C, excellent thermal shock resistance, and chemical inertness, is the material of choice for applications involving high-temperature processes. This makes it highly suitable for the growth of high-quality single crystals, which require the material to withstand rapid heating and cooling cycles without deforming or compromising the quality of the crystal.

Applications in Single-Crystal Growth

The primary application of the High-Purity Quartz Crucibles are in the single-crystal growth process, where it plays a pivotal role in providing a stable container for the silicon material as it undergoes the crystallization process. Silicon is melted within the crucible and subsequently cooled to form single crystals, which are then used to produce wafers for semiconductor devices.

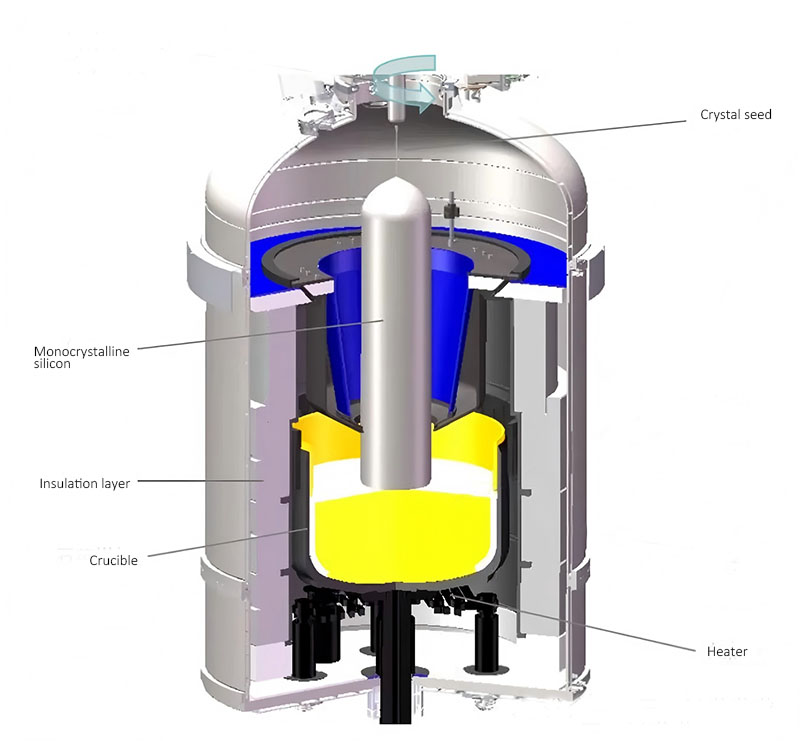

In the Czochralski method (Cz process), one of the most common methods for growing single-crystal silicon, the crucible is filled with silicon, and a seed crystal is dipped into the molten silicon to initiate crystal growth. The quality of the crucible is directly linked to the quality of the crystal grown. High-purity quartz ensures that there are no contaminating elements that could affect the structure of the silicon, which is critical for maintaining the electrical and mechanical properties of the semiconductor material.

In addition to its role in the Cz process, the High-Purity Quartz Crucibles is also used in other crystal growth techniques such as the Floating Zone (FZ) method and the Vertical Gradient Freeze (VGF) method, which are employed to produce high-quality silicon wafers for advanced semiconductor applications.

Key Features and Benefits

• High Purity: The primary feature of this crucible is its exceptionally low impurity level. The use of high-purity quartz ensures minimal contamination, which is crucial for the production of high-quality single-crystal silicon used in semiconductor applications.
• Thermal Resistance: Quartz is highly resistant to thermal shock, allowing it to endure the extreme temperature fluctuations encountered during the crystal growth process. This property ensures that the crucible will not crack or degrade when subjected to rapid heating or cooling cycles.
• Chemical Inertness: The High-Purity Quartz Crucibles is chemically inert and will not react with the silicon or other substances used during the crystal growth process. This inertness helps to preserve the purity of the silicon and avoid introducing any impurities that could negatively affect the properties of the final product.
• Consistent Quality: Manufactured to strict specifications, the High-Purity Quartz Crucibles maintains a consistent structure and quality, ensuring reliable performance over repeated cycles in the crystal growth furnace. The high-quality quartz used ensures minimal defects in the crucible, reducing the likelihood of impurities being introduced into the silicon.
• Durability and Longevity: The crucible is designed for extended use, with a long operational life under high-temperature conditions. This makes it a cost-effective solution for semiconductor manufacturers, as it can endure numerous growth cycles before requiring replacement.
• High Mechanical Strength: The crucible offers high mechanical strength, which allows it to resist pressure and mechanical stress during handling, loading, and unloading in the furnace. This ensures that it will maintain its structural integrity throughout the entire crystal growth process.

Applications in the Semiconductor Industry

Single-crystal silicon is used in a wide range of semiconductor applications, including integrated circuits, solar cells, power devices, and optoelectronics. The High-Purity Quartz Crucibles plays a key role in the production of these critical materials. By providing a stable, contamination-free environment during the crystal growth process, the crucible ensures that the resulting silicon crystals have the high purity and structural integrity needed for these applications.

For the solar cell industry, high-quality single-crystal silicon is essential for producing photovoltaic cells that offer high efficiency and long-term reliability. In the electronics industry, single-crystal silicon is used to manufacture integrated circuits, which form the foundation of modern electronic devices such as computers, smartphones, and automotive systems.

Additionally, High-Purity Quartz Crucibless are crucial in the production of high-power devices that require precise material properties, such as low dislocation densities and high electrical conductivity, for use in advanced applications like power electronics and LEDs.

Semicorex High-Purity Quartz Crucibles are indispensable tool in the semiconductor manufacturing process, particularly for the growth of high-quality single-crystal silicon. Its exceptional purity, thermal resistance, chemical inertness, and durability make it ideal for use in high-precision crystal growth processes. By ensuring minimal contamination and providing a stable environment for crystal formation, this crucible plays a crucial role in producing the high-quality semiconductor materials that power modern electronics, solar technologies, and a wide range of other high-tech applications.
